Fully Automatic circular saw machine for metal cutting and chamfering machine line

01 Oct February 2025 | LionNord



This is a CNC fully automatic metal cutting circular saw line with integrated deburring.

Let me break down the working principle and main components of the system in your diagram:

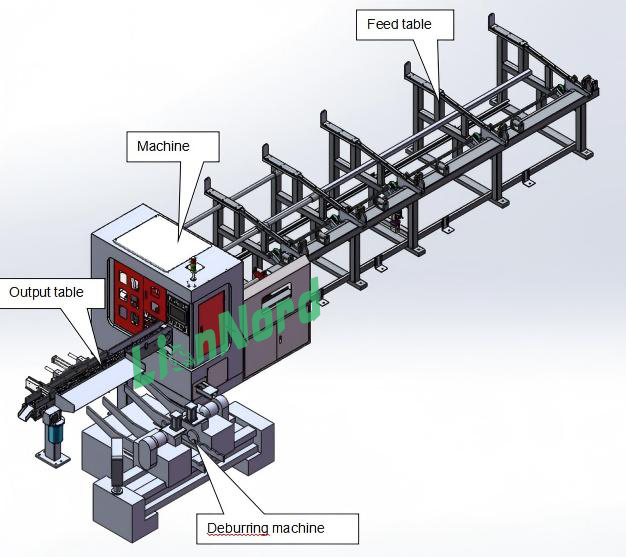

 Main Components:

  1. Feed Table

    • Holds raw steel bars or pipes.

    • Equipped with rollers and automatic feeding system (servo ).

    • Moves the material forward to the saw machine.

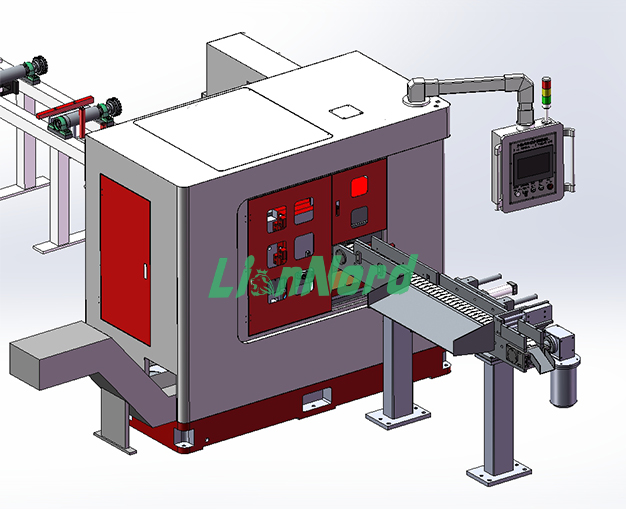

  2. CNC Circular Saw Machine

    • Controlled by CNC for high precision cutting.

    • Uses a high-speed TCT (tungsten carbide tipped) circular saw blade.

    • CNC ensures accurate length cutting, and automatic feed rate adjustment.

    • Enclosed body for safety and noise reduction.

    • Integrated cooling/lubrication system to reduce tool wear.

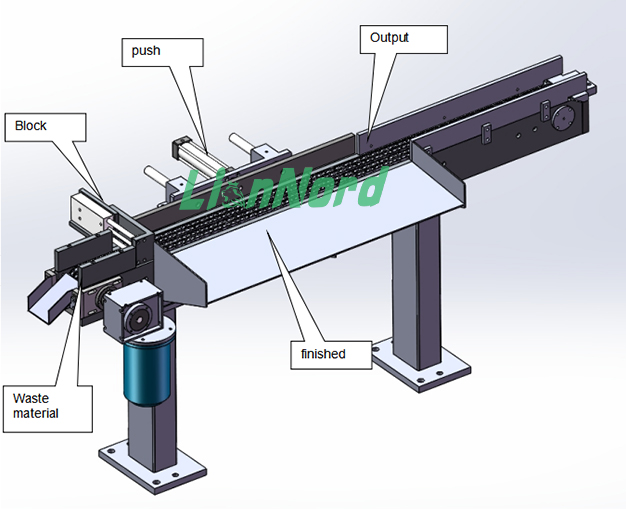

  3. Output Table

    • Collects the cut pieces.

    • Can be integrated with automatic sorting or stacking system.

    • Ensures continuous operation without manual intervention.


  4. Deburring Machine

    • Removes sharp edges, burrs, and chips after cutting.

    • Can be roller brush type, belt type, or rotary deburring head.

    • Prepares pieces for welding, machining, or further processing.

Process Flow:

  1. Loading – Steel bars placed on feed table.

  2. Automatic Feeding – CNC feed system pushes bar into saw machine.

  3. Cutting – Circular saw blade cuts at programmed length/angle.

  4. Output Handling – Cut pieces move to output table.

  5. Deburring – Pieces automatically transferred to deburring machine for edge finishing.

  6. Final Collection – Clean, finished parts collected for next process.

✅ Advantages:

  • High-speed, high-accuracy cutting.

  • Fully automated, reducing labor cost.

  • Clean, burr-free finish (ready for welding/machining).

  • Suitable for mass production of steel bars, pipes, rods, or profiles.
