360mm ultra-high speed metal cutting CNC Horizontal band saw machine Create another miracle！！！

24 Oct February 2025 | LionNord

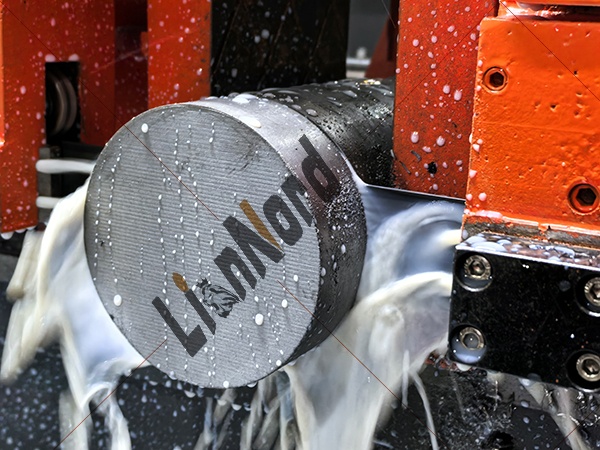

Test data: For cutting Φ200 mm 45# steel – Cutting time: 50 s, Blade speed: 250 m/min, Feed rate: 225 mm/min.

The BSV360CNC horizontal metal band sawing machine is an efficient band sawing machine with beautiful appearance design, structural design, good stability, and strong rigidity. Specially designed for small and medium-sized general machinery, molds, forging, metallurgy, mining machinery, ships, bridges and metal materials, square materials, round materials, profiles, etc., it can also adapt to sawing and processing various black and non-ferrous metal materials

High-Speed Horizontal CNC Metal Band Saw

1. Equipment Overview

Horizontal Metal Band Saw is a high-efficiency precision cutting machine designed for sawing large-diameter and large cross-section metal materials. It offers fast cutting speed, high accuracy, long blade life,

stable performance, and easy operation.

It is especially suitable for **cutting pipes, ingots, forgings, and various plate-type workpieces** across industries such as general machinery, mold making, forging, metallurgy, mining, shipbuilding, bridges, and metal processing.

2. Working Process

1. The workpiece is lifted by a crane and placed onto the roller loading rack.

2. The feeding table moves the material to the positioning station for alignment with the cutting line.

3. The saw frame moves quickly toward the material and stops near the workpiece.

4. The main motor starts, and the automatic cutting process begins.

5. Upon completion of one cut, the saw frame automatically retracts quickly.

6. The feeding table advances for the next cut, completing one cutting cycle.

7. The process repeats automatically for continuous cutting operations.

3. Design and Manufacturing Standards**

| No. | Item                             | Unit    | Specification

| 2   | Operating Environment            | —       | Temp: -5°C~45°C; Altitude ≤1000m; Clean, dry air

| 3   | Max. Cutting Capacity (W×H)      | mm      | 360 × 360

| 4   | Max. Workpiece Diameter          | mm      | Φ360

| 5   | Productivity Test (Carbon Steel) | cm²/min | ≥220

| 6   | Saw Blade Size                   | mm      | 5280 × 41 × 1.3

| 7   | Table Load Capacity              | T       | 4

| 8   | End-face Perpendicularity        | mm      | ≤0.15/100

| 9   | Repeated Feeding Accuracy        | mm      | ≤0.2

| 10  | Operating Noise                  | dB      | <85

| 11  | Blade Linear Speed               | m/min   | 20–80 (Variable frequency stepless speed)

| 12  | Feed Rate                        | mm/min  | 0–500 (Servo stepless speed)

| 13  | Hydraulic Pump                   | kW      | 1.5

| 14  | Feed Servo Motor                 | kW      | 0.85

| 15  | Coolant Pump                     | W       | 150

| 16  | Main Motor                       | kW      | 7.5

| 17  | Operation Mode                   | —       | Manual / Fully automatic

| 18  | Chip Removal                     | —       | Automatic conveyor

| 19  | Single Feeding Stroke            | mm      | 440

| 20  | Machine Dimensions (L×W×H)       | mm      | 2650 × 3000 × 2500

5. Structural Features and Process Description**

The **BSV360CNC High-Speed Horizontal Metal Band Saw** represents a new generation of intelligent sawing technology — integrating **CNC control**, **servo drive**, **patented vibration-damping guide**,

and **automatic chip removal**.

With high rigidity, precision, and automation, it delivers superior performance for demanding industrial applications, ensuring **high productivity, precision cutting, and extended tool life**.
