Band Saw

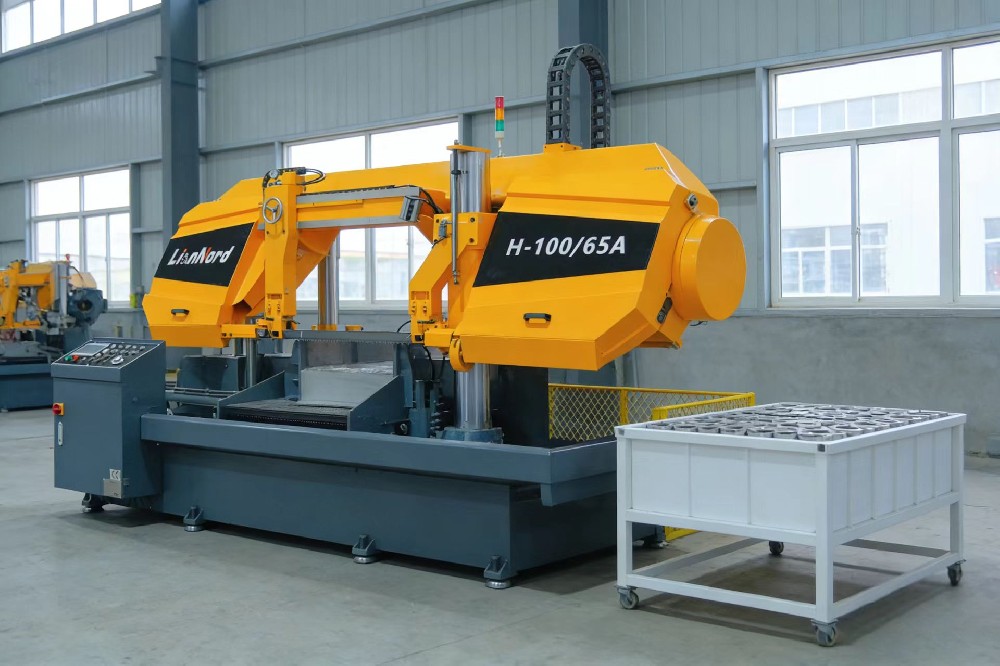

100*650mm High Speed Automatic Band saw for steel plate

Automatic band saw machine Features
Sawing speed increased by 50%
Saw blade life increased by 50%
Machining accuracy increased by 50%
Equipment service life increased by 50%

Benefits at a glance

H-100/65A High speed band saw Cutting Data :

Cutting Material : H713

Material size: 700*200 mm

Cutting speed : 20mm/min

Model No.	H-100/65 （Automatic)
Technical Data	Cutting capacity(mm)	650mm 650HX900W
	Blade speed(m/min)	15-80 m/Min
	Blade size(mm)	1.6×54 （1.6*67 option）
	Main Motor(kw)	11
	Hydraulic Motor(kw)	2.2
	Work piece Clamping	Hydraulic Vise
	Blade Tension	Hydraulic
	Chip clean	Chip conveyor
	Main Drive	Worm wheel drive
	Material feed	Hydraulic Plate table
	Feeding table length	10001000mm (widthlength)
	Machine size
	Machine weight	6500KGS
Standard Equipment	Blade Cleaning brush	Power blade cleaning brush
	Working light	YES
	One piece of bi-metal saw blade	YES
	One set of tools with tool box	YES
	Operation manual	YES

100*650mm High Speed Automatic Band saw for steel plate

More,Stronger, Faster,Stable ,Efficiency,Short Tailing
