Band Saw

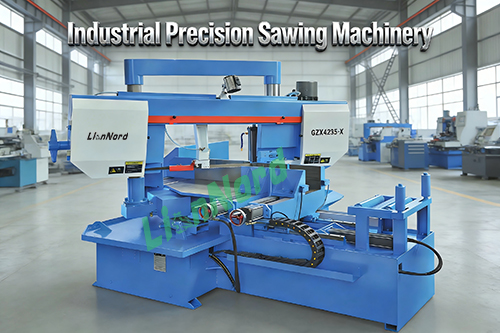

CNC Automatic rotary angle cutting metal band saw machine

1> Fast and stable delivery time
2> Machine voltage can make as requests
3>Machine inspection vodeis offered when finished
4>support inspection machine before delivery

Benefits at a glance

350mm angle cutting band saw machine

0-45 degree autoamtic rotary

Angle rotate setting in PLC

45 degree cutting 350*350mm

Support OEM as requests

Model No.	GZX4235X
Technical Data	Cutting capacity(mm)	0° 500350mm 45° 350350 mm 60° 200*200mm
	Blade speed(m/min)	18-80m/min
	Blade size(mm)	34×1.1 ×4460
	Main Motor(kw)	4
	Hydraulic Motor(kw)	0.75
	Coolant Pump(kw)	0.06
	Work piece Clamping	Hydraulic Vise
	Blade Tension	manual
	Angle rotate	Automatic
	Single feeding length	400mm *999times
	Material feed	Automatic
	Machine weight	2000kgs
	Machine size	2100×2400×1900mm
	Working light	YES
	One piece saw blade	YES
	One set of tools with tool box	YES
	Operation manual	YES
	Roller rack	YES

CNC Automatic rotary angle cutting metal band saw machine

More,Stronger, Faster,Stable ,Efficiency,Short Tailing
