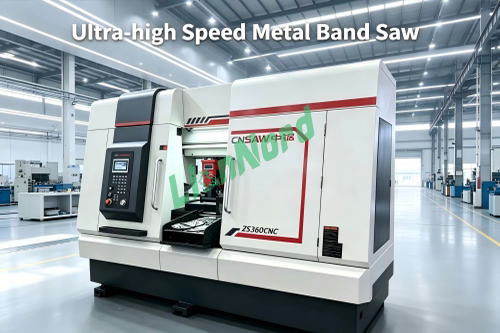

360mm Ultra high speed CNC horizontal metal band sawing machine
1> Fast and stable delivery time
2> Machine voltage can make as requests
3>Machine inspection vodeis offered when finished
4>support inspection machine before delivery
5> Quality warranty , Concerns about lack of after-sales service
Benefits at a glance
360mm Ultra high speed CNC horizontal metal band sawing machine
Max Cutting diameter : 10-360mm
Blade speed : 30-200m/min
High accuracy servo motor cutting
Nitrogen pressure cylinder improves the lifespan of the screw and makes sawing smoother
Ductile alloy saw wheel ensures no deformation during high-speed sawing process
The oversized and ultra strong alloy guide head ensures the verticality of sawing
Model No. | CNC Ultra high speed metal band sawing machine | |
Technical Data | Cutting capacity(mm) | 10-360mm |
Blade speed(m/min) | 30-200m/min inverter speed | |
Cutting Speed | 0～500 mm/min | |
200MM #45 Steel cutting time | 50-55s’ | |
Blade size(mm) | 48×1.3 | |
Main Motor(kw) | 7.5 (4P) | |
Hydraulic Motor(kw) | 1.5 | |
Coolant Pump(kw) | 0.09 | |
Allowable load weight for workbench | 3T | |
Work piece Clamping | Hydraulic Vise | |
Blade Tension | Hydraulic | |
Cutting feed | Servo Motor | |
Main Drive | Worm wheel drive | |
Chip conveyor | Automatic | |
Material feed | Auto | |
Multiple feed | 500mmx999 times | |
Machine size | 2350×3500×1650 | |
Machine weight | 5000kg | |
