Aluminum Saw

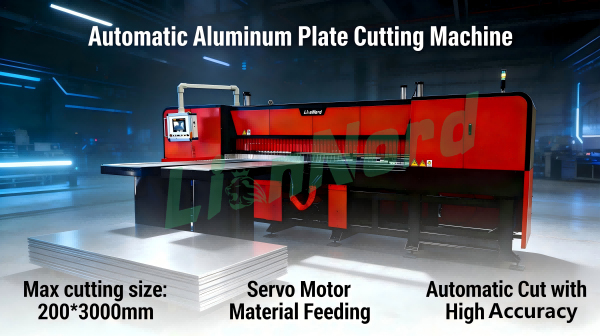

CNC ALUMINUM PLATE BEAM SAW

Features of the CNC aluminum saw:
High speed precision cutting
High sawing efficiency
Low operating costs;
Adopting servo motor feeding;
Touch screen control panel, suitable for all operations,
Manual and automatic control modes

Benefits at a glance

Features of the CNC aluminum saw:

High speed precision cutting

High sawing efficiency

Low operating costs;

Adopting servo motor feeding;

Touch screen control panel, suitable for all operations,

Manual and automatic control modes

Model
Cutting ability	Cutting length	4000mm
	Cutting width	4000mm
	Maximum of cutting height	200mm
	Maximum blade exposure height	205mm
	Max Cover height	280mm
Main saw blade	Main saw motor	30KW
	Main saw diameter	Ø700mm
	Main saw core diameter	Ø 38mm
	Main saw speed	1800~3000 r/min
Saw seat	Moving inverter motor	1.5KW
	Forward speed	Fastest 15 m/min
	Backward speed	Fastest 35m/min
	Automatic feeding motor	AC 2.9KW
	Used air pressure	≥5.0 kg/cm2
	Workbench height from the ground	1180 mm
	Machine dimensions (length × width × height)	7313mm6931mm2077mm
	Machine weight	9800KGS

More,Stronger, Faster,Stable ,Efficiency,Short Tailing
