CNC automatic high efficiency Rebar punching and shearing machine

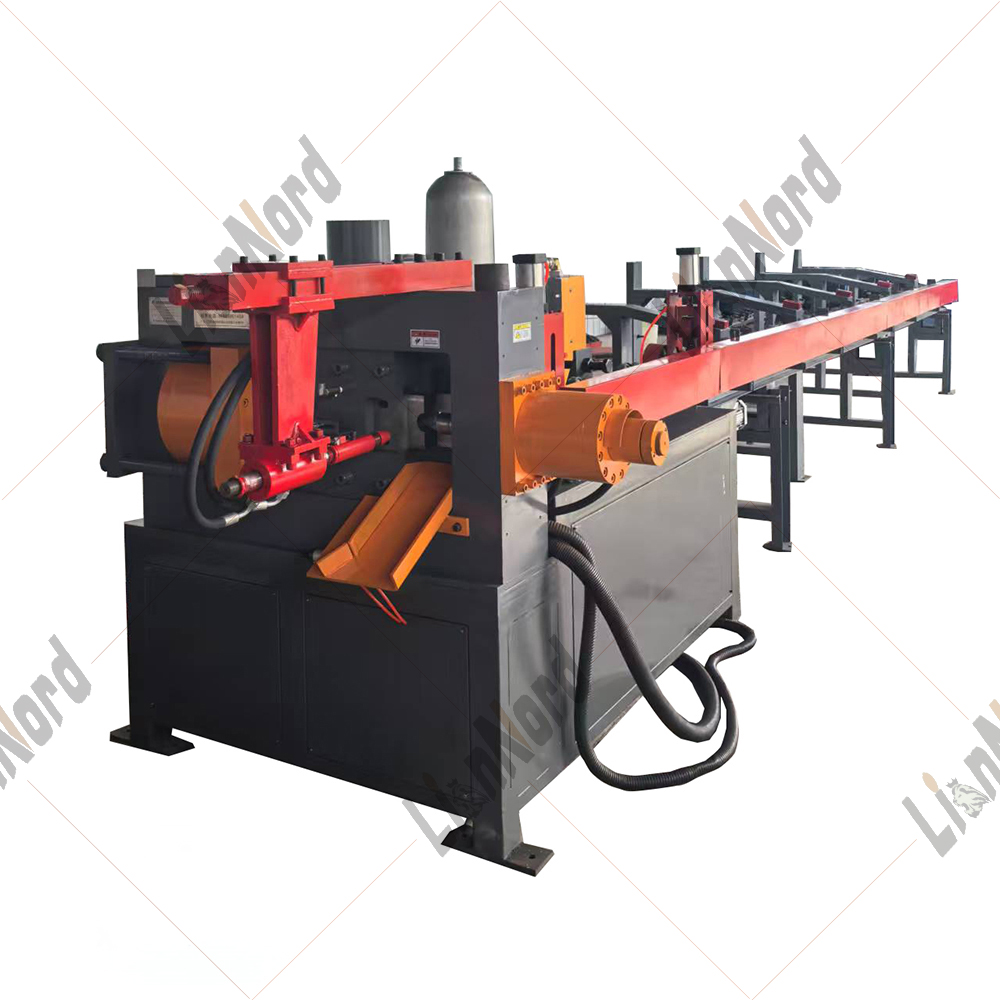

High speed Heavy duty Automatic metal bar shearing machine with automatic loading table

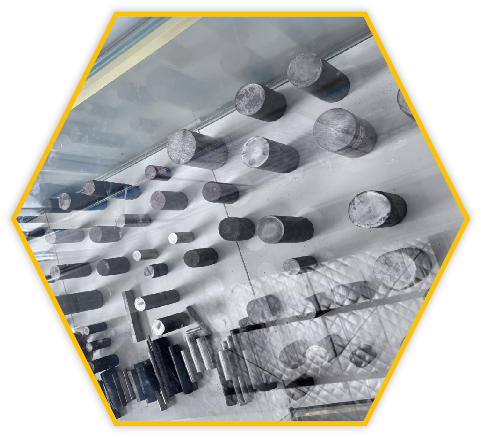

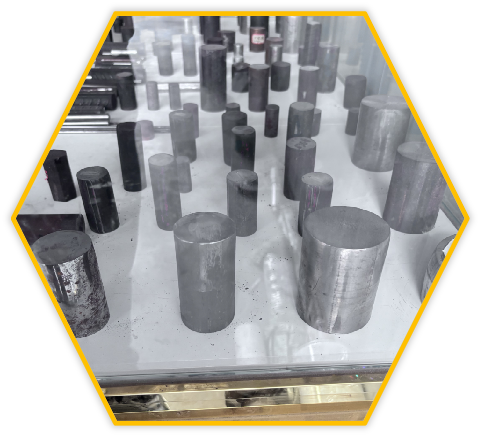

Suitable processing material:Aluminum, Bras,20# steel (C20),45# steel (C45),40Cr (AISI 5140 / EN 1.7035),20CrMnTi (AISI 4820 modified / similar to EN 1.6523),as well as other alloy steels.

Benefits at a glance

CNC punching /shearing machine adopts the original imported hydraulic cutting, stable performance and reliability, has a shear end surface flat, length error is small,

 fast speed and other characteristics,can effectively solve the customer under the material slow, punching and shearing end surface is not flat,

 the loss of excessive and other issues, and can be a better choice for sawing, punching under the material, saving time and effort, saving supplies.

 machine adopts full-automatic operating system (can realize the whole unmanned operation), full hydraulic system, roller feeding (can add CNC control system), touch screen operation, quantity control and other functions, length error is less than 0.1 mm, section slope is less than 1.5 degrees, end roundness is 98%, weight error ±3g.


Machine model

SM-20NC

SM-35NC

SM-50NC

SM-70NC

SM-80NC

Maximum shear diameter (mm)

Ø 9-20

Ø 10-35

Ø 10-50

Ø 10-70

Ø 80

Cutting time (s/min.)

70

25-50

35-55

30-55

30-35

Cutting length range (mm.)

30-500

30-500

30-500

30-500

30-500

Section inclination

2

2

2

2

2

Section roundness

0.95

0.95

0.95

0.95

0.95

Shear weight error (grams)

+ 5

+ 5

+ 5

+ 5

+ 5

Main motor power (kw)

11

15

18.5

18.5

22

Weight of machine (kg)

1000

2500

3000

6000

6500

CNC automatic high efficiency Rebar punching and shearing machine
